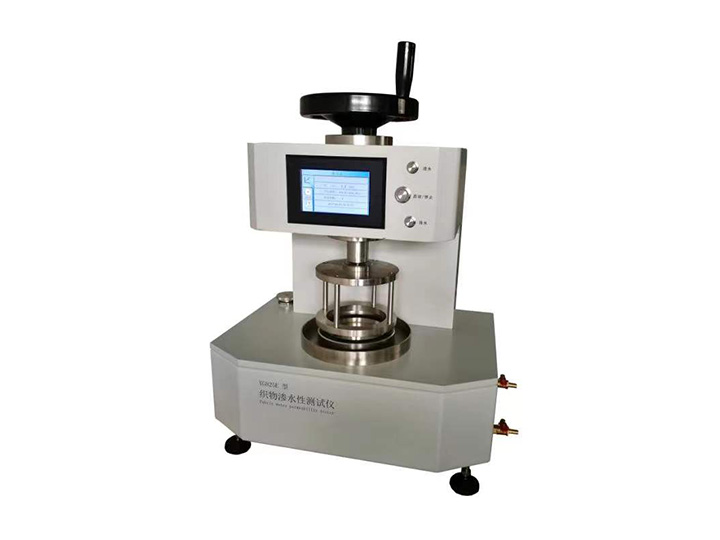

YG825E digital water permeability tester is an instrument integrating single-chip technology and data acquisition technology. The instrument meets the following standards: GB/T4744-1997, ISO 811, ASTM D751, FZ/T01004, JIS L1092, etc. The appearance design of the instrument is beautiful and generous, and the human-computer interface is humanized. It integrates rich expansion functions related to standards to facilitate users to do various experiments. It is suitable for testing the water resistance of fabrics, and is suitable for tight fabrics, such as canvas, oilcloth, tent cloth, rain proof cloth, clothing cloth, etc.

Main configuration:
Pressure sensor: accuracy: 5 ‰ PPS
Pressure control electromagnetic pump: high efficiency low flow electromagnetic pump
Pressure relief drain valve: high back pressure low leakage solenoid valve
16 bit AD data acquisition: resolution: 1/65535
Technical parameters:
Display mode: Chinese LCD interface
Sensor accuracy: 5 ‰
Measurement error: ≤ 5%
Sample chuck area: 100cm ²
Water pressure rise mode: pulsating
Water pressure rise rate: 100-60000 Pa/min
Water tank capacity: 3L
System clock error: less than 3 minutes per month
Gravity coefficient: 9.80665m/ss
Measurement and control range:
(1) 10m sensor 0 -- about 9800 (10Pa)
(2) 20 meter sensor 0 -- about 19600 (10Pa)
(3) 50 meter sensor 0 -- about 49000 (10Pa)
Appearance: desktop
Maximum power consumption: 100W
Applicable power supply: AC 220V (± 10%) Frequency: 50 HZ with good grounding jack
Overall dimension: 560 * 400 * 550 (mm) (L * W * H)
Net weight/gross weight: ≤ 50kg

•
  YG825E - Ⅱ intelligent color touch screen water permeability tester (export type, with printing)
