Summary:

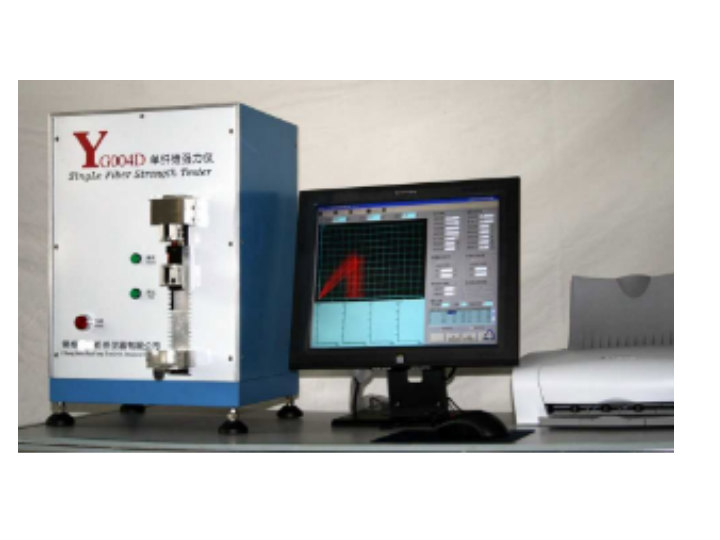

YG004 pneumatic single fiber strength tester is used to measure the breaking strength, breaking elongation, breaking strength, constant load, elongation, constant elongation strength and breaking time of single fiber. Used to measure breaking strength, elongation at break, breaking strength, elongation, breaking time, etc. of single fiber.
Standards:
GB/T6101-1985 Test Method for Breaking Strength of Cotton Fiber Bundle Method
GB/T 9997-1988 Determination of Breaking Strength and Elongation of Chemical Single Fibers
GB/T 14337-1993 Test Method for Breaking Strength and Elongation of Synthetic Staple Fibers
ISO 5079-1977 Determination of Breaking Force and Elongation at Single Fiber Breaking
Main technical indicators:
1 Fiber strength type: constant rate elongation (CRE)
2. Load range of fiber strength machine: 0~100cN (three grades of 25, 50 and 100cN) or 0~300cN (three grades of 50, 150 and 300cN);
3. Elongation range: 0 ~ 110mm (when the clamping distance is 2mm)
4. Sample clamping distance: 10 ~ 60mm, accuracy ∠ 0.1mm
5. Gripper area: 4 × 2mm.
6. Tensile speed: 0.2 ~ 200mm/min, accuracy ± 2%
7. Clamping mode: pneumatic clamping.
8. Sampling frequency: (500~1000) times/Sec
9. Data output: display: LCD, strength value, elongation value, strength elongation curve and initial modulus. Print: single value, curve and statistical value of test data.
10. Power supply: 220V/50Hz, 500W
11. Overall dimensions (length × wide × High): host 400 × four hundred and fifty × 530mm (excluding computers, printers, etc.)
