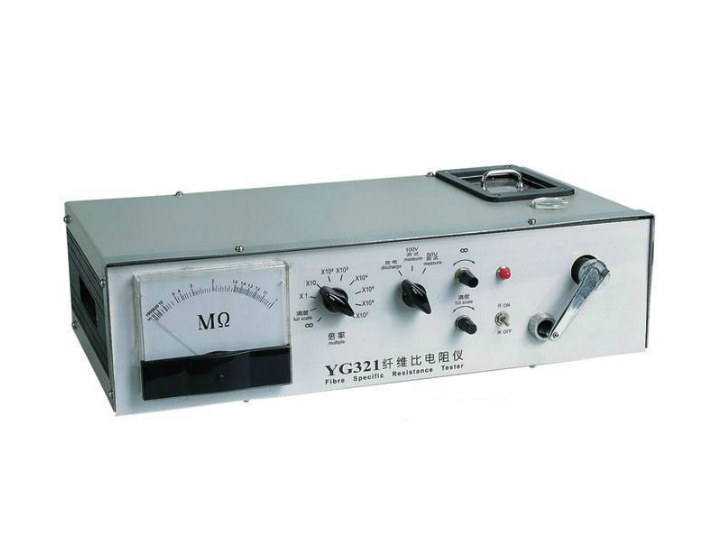

YG321 fiber specific resistance meter is used to measure the resistance value with a certain density under a certain geometric shape, and then convert it into the fiber specific resistance value according to the fiber filling degree
[Scope of application]: used to measure the resistance value with a certain density under a certain geometric shape, and then convert it into the specific resistance value of the fiber according to the filling degree of the fiber
[Relevant standards]: GB/T 14342-1993 Test Method for Specific Resistance of Synthetic Short Fibers
[Technical Parameters]:
1. Measuring range of fiber specific resistance: 106 Ω~1013 Ω
2. Weight of test sample: 15g
3. The measured voltage is 50V, 100V, and the deviation is less than ± 5%
4. Working environment temperature: 20 ℃± 2 ℃, humidity: 65% ± 10% RH
5. The zero drift of the instrument is less than ± 4% between 1 and 8 hours under stable working voltage and no signal input
6. Basic error of the instrument for standard resistance measurement: ≤± 20%
7. Power supply: AC220V
8. Overall dimension: 450 × two hundred and sixty-five × 133mm(L × W × H)
