Summary:

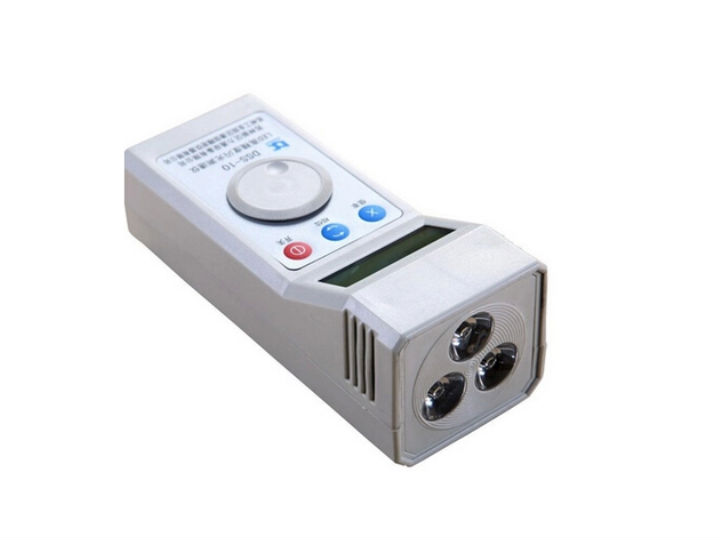

The DSS-10 LED flash velocimeter is a new LED light source that flashes at a certain frequency. When the DSS-10 LED flash velocimeter is used to observe high-speed rotating or moving objects, the flashing frequency of the LED lamp is adjusted to make it close to or synchronized with the rotation or movement speed of the object to be measured. Although the object to be measured is moving at a high speed, it appears to be moving slowly or stationary, So as to detect the rotation speed of the object or the surface quality or running condition of the high-speed moving object.
Technical parameters:
1. Range: 1-99999 strobe/min.
2. Speed measurement accuracy: 0.001%.
3. Illumination: 750LUX
4. Display: LED display
5. Power supply: 7.4v/1100mA lithium battery
6. Power consumption: working time ≤ 0.2W, continuous working time of 8 hours, standby time of 3 months.
7. Working ambient temperature: - 10 ° - 55 °
8. Size: 156 × sixty × 56(mm)。
9. Weight: about 0.2kg (including battery)
