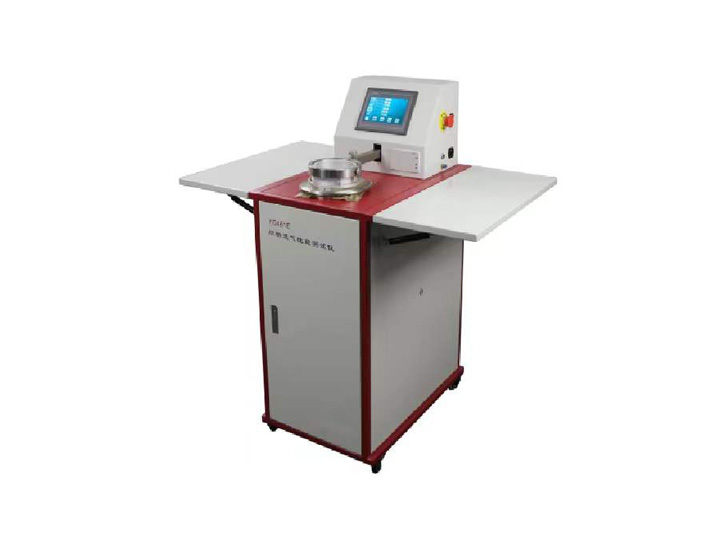

Scope of application:
Used for testing the permeability of coated fabric, filter paper, filter material, plastic and other sheet materials.
Standards:
GB/T5453 GB/T13764 ISO9237 ISO7231 ISO5636 BS5636 ASTM D737 DIN 53887 JIS L1096 BS5636
Performance characteristics:
● High precision pressure sensor imported from Switzerland with domestic accuracy.
● Smart touch interface, dynamic test full display.
● Full range automatic detection and conversion of air permeability and air permeability of various samples.
● Different national standard parameters and units can be set at will, and the test results can be printed directly without conversion.
● Measurement unit: mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min
● Obtain the certificate of computer ventilation test software issued by the State Intellectual Property Office
● Obtain the metrological calibration certificate of an internationally recognized third-party laboratory.
Technical parameters:
1. Pressure range: 0 ~ 4000Pa, self setting pressure drop
2. Measurable permeability: 0.1~12000mm/s
3 Measurement error: ≤± 2%
4. Thickness of measurable fabric: ≤ 15mm
5 Air suction volume regulation: data feedback dynamic regulation
6. Constant value circle of sample area: 5cm2; 20cm2; 50cm2; 100cm2; Four
7 Constant value circle of sample diameter: Ф 50mm(≈19.6cm2) Ф 70mm(≈38.5cm2)
8 Nozzles: 11 in total
9 Data processing capacity: ≤ 1000 tests
10 Data output: HD touch screen display; Built in micro printer;
11 Power supply: AC 220V ± 10V 50Hz
12 Power consumption: 2000W
13 Weight: 80Kg
14 Shape: 600 × seven hundred × 1100mm(L × W × H)
