Summary:

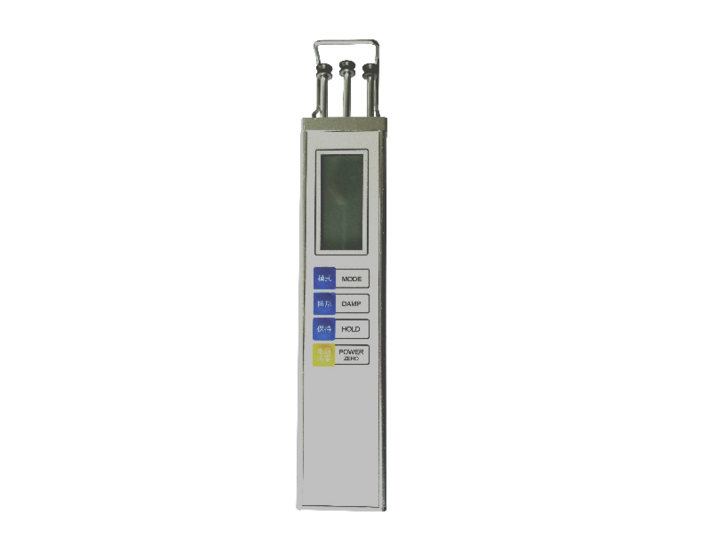

DTM200) digital yarn tension meter is used for static and dynamic tension detection of various wool, linen, silk, chemical fiber, metal wire drawing, glass fiber, optical fiber and other products, providing reliable basis for improving yarn quality and product wearing performance.
Purpose:
It is used to measure the dynamic tension of various flexible wires. It is equipped with a digital display device and a movable yarn clamping device, which can be carried around for testing.
Instrument features:
It has high measurement accuracy, good stability, small size, simple operation, automatic zero tracking, automatic full calibration, overload protection, low voltage display, and can display the ^ large value, ^ small value, average value, etc. in each detection.
It is used to measure the dynamic tension of various flexible wires. It is equipped with a digital display device and a movable yarn clamping device, which can be carried around for testing.
Technical parameters:
1. Range: 0-100cN 0-200cN, measuring principle: strain bridge
2. Overload protection: 200%
3. Temperature range: 10~45 ℃
4. Unit: CEN (100cN=1N)
5. Measuring wheel offset: 0.5mm
6. Precision: ± 1% FS or ± 1 digit
7. Shell material: aluminum frame and shell
8. Signal processing: digital, 10 bit analog-to-digital converter
9. Damping: adjustable electronic damping (3rd gear), moving average
10. Sampling rate: about 1k HZ (internal frequency of the instrument)
11. Display refresh rate: about 2 times/second
12. Display: 4-digit LCD, 12.7mm high
