PS-100 electronic spinneret mirror tester
key word: PS-100 electronic spinneret mirror tester
Overview: Summary:This microscope tester is equipped with a continuous zoom monocular microscope. It adopts unique de cluttering light and large depth of field technology, which has the characteristics of clear imaging, strong stereoscopic sense, long working d…
Summary:

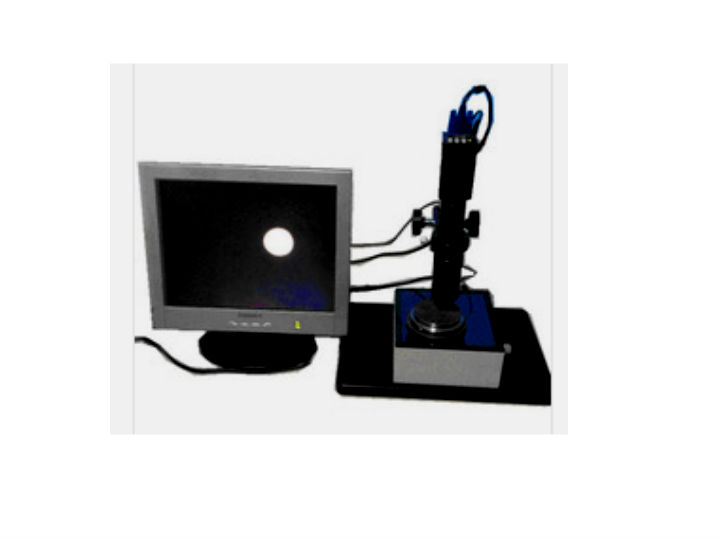

This microscope tester is equipped with a continuous zoom monocular microscope. It adopts unique de cluttering light and large depth of field technology, which has the characteristics of clear imaging, strong stereoscopic sense, long working distance, wide field of vision, etc. In addition, it is equipped with XY mobile stage, which is used together with high-definition industrial camera and display, so that the fine hole shape of the spinneret can be clearly displayed in front of you.
Technical indicators:
1 Main engine magnification range: 0.7X~4.5X
2 Optical magnification range: 21X~1066X (1/3 'CCD, 14 inch monitor)
3 Zoom ratio: 1:6.5
4 Working distance: 98mm
5 Lifting adjustment range: 275mm
6 Hand wheel focusing range: 60m
7 Camera eyepiece: 0.35X, 0.5X (standard configuration), 0.75X, 1X, 1.5X, 2X
8 Auxiliary large objective lens: 0.3X, 0.5X, 0.75X, 1.5X, 2X
