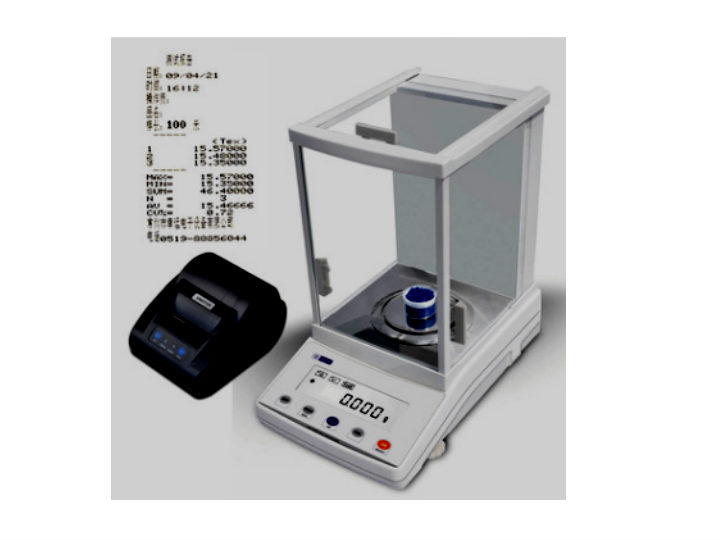

Specifications:210g/0.001g
Sensor:Strain gauge transducer
Display screen:LCD
Scale size:Φ 90mm
Zui Small weighing:0.006g
Reading accuracy:0.001g
Linear error:±0.005g
Stabilization time:≤3s
Sensitivity drift:±0.005g
Weighing mode:g
Operating temperature:17.0℃~25.5℃
Stabilization time:3s
Counting function:have
Windshield size:240mm*185mm*265mm
Data interface:RS-232 data serial port and data cable
External calibration weight:100g
Key description:Count; peel
Package size:
Scale body packaging:
Inner package: 415 × two hundred and eighty-five × 430mm .
Outer package: 475 × three hundred and fifteen × 485mm
Material:Precision cast aluminum shell, glass windscreen
Printer:Direct Thermal
Software functions:
*There are seven kinds of textile unit conversion: ounce (oz), number (Tex), metric count (Nm), British count (Ne), denier (D), gram/square meter (g/m2), ounce/square yard (oz/yd2).
*Time, date, and sample length of 100, 200, and 400 times can be set.
*It can automatically store 100 groups of data, and can delete or continue testing at will.
*It can print and count each weighing value and zui big value (Max), zui small value (Min), average value (AV) and non-uniformity rate (CV).
*It is suitable for testing the linear density of various combed high count yarns.
