YG Overview:

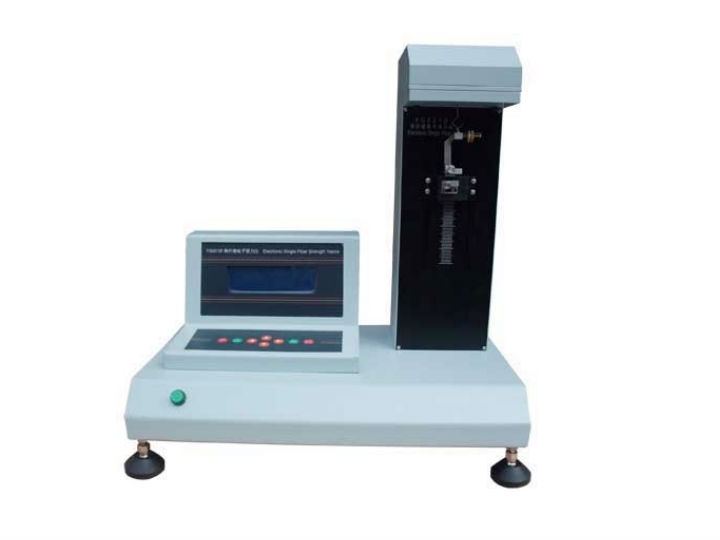

G001B single fiber electronic strength tester is a precision instrument for testing the tensile mechanical properties of fibers. It can be used for a tensile test and a constant elongation tensile test of fibers in the dry or wet state, as well as a tensile test of nascent fibers. The test results can be directly displayed by the Chinese LCD, and the external printer can draw the stress-strain curve and print various data
Applicable standards:
GB/T 14337-2008 Test Method for Tensile Properties of Chemical Fiber Staples
Technical parameters:
1. Load measurement range: 0-98cN;
2. Load measurement error: ± 1cN;
3. Load measurement error resolution: 0.1cN;
4. Elongation measurement range: 0-100mm;
5. Elongation measurement error: ± 0.05 ㎜;
6. Elongation measurement resolution: 0.01mm;
7. Tensile speed: 1-99mm/min;
8. Operating environment: room temperature 15-30 ℃, relative humidity no more than 80%;
9. Power supply: AC220V, 50 ± 1Hz;
10. Operating weight: about 30Kg;
11. Power consumption: about 50VA.
