Purpose:
This instrument is used to shake sliver and roving of cotton, wool and spun silk into a certain length to measure its evenness.
Structure principle:

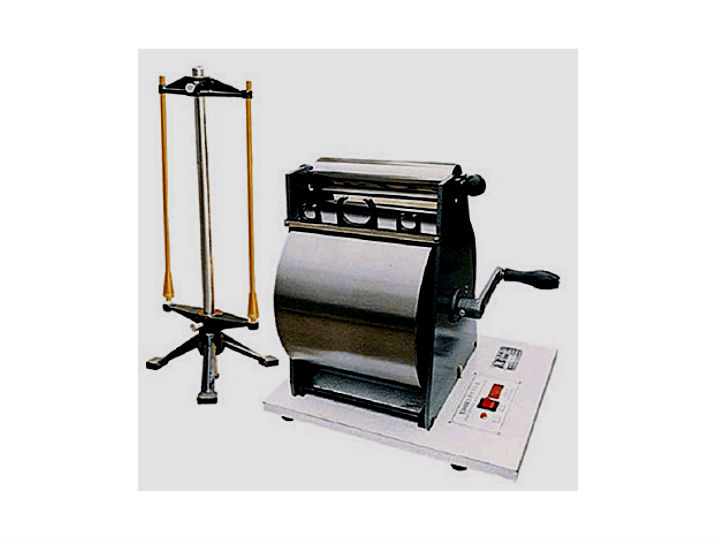

The instrument is composed of a length measuring wheel with a circumference of 1m, and its shaft is mounted on the wallboard and upper pressure roll on both sides. The length measuring wheel is shaken by a handle mounted on one end of the shaft, and the sample length is measured by counting the parts.
Main technical parameters:
1. Perimeter of measuring wheel: 1m
2. Measuring wheel width: 250mm
3. Number of sample ends: a 2 ends of roving
B Strip 1
4. Upper pressure roll diameter: 62mm
Applicable standards:
1. Enterprise product standard of textile mill
Equipped with WT2102 electronic balance, the tex value of sliver and roving can be analyzed
