Scope of application:

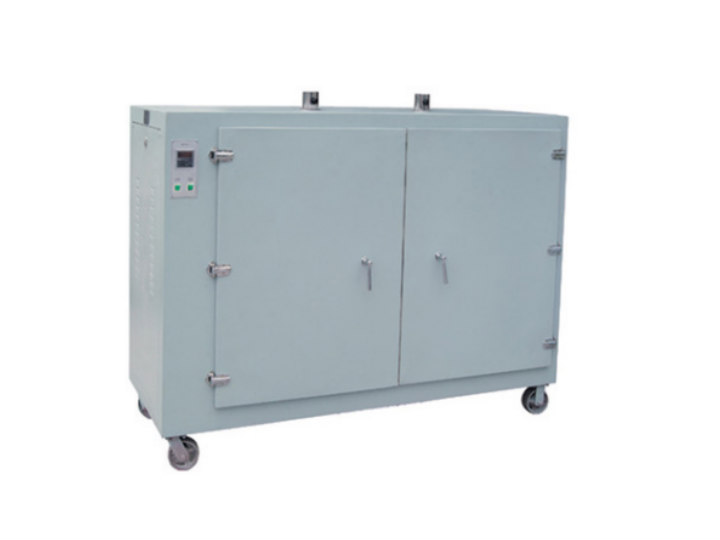

Drying equipment for shrinkage test in knitting, cotton weaving, yarn dyed weaving, printing and dyeing, clothing and other industries.
Standards:
GB/T 8629-2001 Domestic Washing and Drying Procedures for Textile Testing; ISO06330-2000
Main technical parameters:
1. Effective size in the box (length × wide × Height: 1600 × six hundred × 1050mm
2. Power supply: Ac380V 50Hz three-phase four wire
3. Heating power: 4.2KW
4. Motor power: 180W
5. Drying method: forced hot air convection
6. Temperature control mode: electronic automatic temperature control
7. Operating temperature range: room temperature~99.9 ℃ LED
8. Temperature distribution accuracy: 60 ± 5 ℃ (empty box)
9. Overall dimensions (length × wide × Height: 2000 × eight hundred and twenty × 1560mm
10. Total weight: about 400Kg
