Summary
NR20XE φ 20mm long diameter and stable end face can measure surface texture and wet products.
Difference between NR20XE and ordinary portable colorimeter
When measuring products such as fresh meat with an ordinary colorimeter, the whole body of the instrument is placed on the tested object, which not only contaminates the instrument, but also causes cross contamination to the tested object. The NR20XE is a vertical structure, which ensures that the body is on top when measuring, and only the measuring port contacts the measured object.
Product introduction

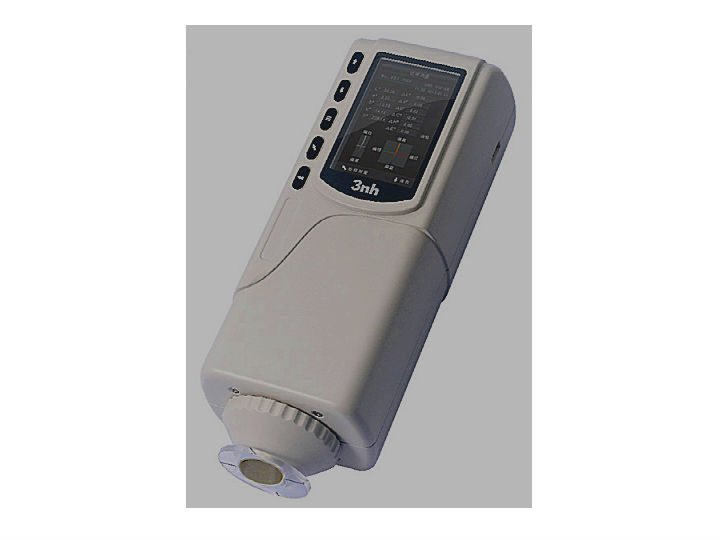

3nh NR20XE is a portable computer colorimeter designed on the basis of 45 °/0 ° optical geometry. Its measuring aperture is 20mm. It is the instrument with large aperture among domestic colorimeters at present, and has high measuring accuracy. As a member of the 3nh color difference instrument 45 °/0 ° family, NR20XE is a color difference instrument with unique performance.
The color measurement result of NR20XE is simulated human eye observation, but the accuracy is several times higher than that of human eyes. The NR20XE instrument is more effective than the 8 °/d instrument in reflecting the interaction effect of the sample surface texture and color. The NR20XE can effectively eliminate the error between the human eye and the colorimeter caused by the sample surface texture when judging the threshold of the sample color value tolerance. Therefore, NR20XE is widely used in color QC department.
NR20XE can meet the requirements of plastic (PET, PE, PP, PTA, ABS, EVA particles and powder), color steel plate, coating, textile, fluorescent materials, denim, medicine, food and other industries
Analyze and control the quality in the production process, help enterprises to control product color difference, improve product competitiveness, reduce enterprise losses, and control production costs.
Applicable industries
Food, medicine, textile, non-woven fabric, denim, printing and dyeing, color steel, paper, plastic, chemical, paint, ink, building materials and other industries.
Technical indicators
20mm large measuring diameter, which can accurately measure objects with surface lines
Lengthen the measuring aperture to measure the articles with wet surface
The new super optical path and dynamic integration time created by 3nh are adopted, which has higher measurement stability and accuracy
45 °/0 ° optical geometric design consistent with the visual inspection is measured, and the influence of the article surface characteristics is considered
Annular lighting design for polarized (polarized) materials
Large capacity rechargeable polymer lithium-ion battery is used, which eliminates the need to buy batteries repeatedly
Equipped with high-grade CQCS3 color quality management software, which can be connected to the computer for use
