Summary:

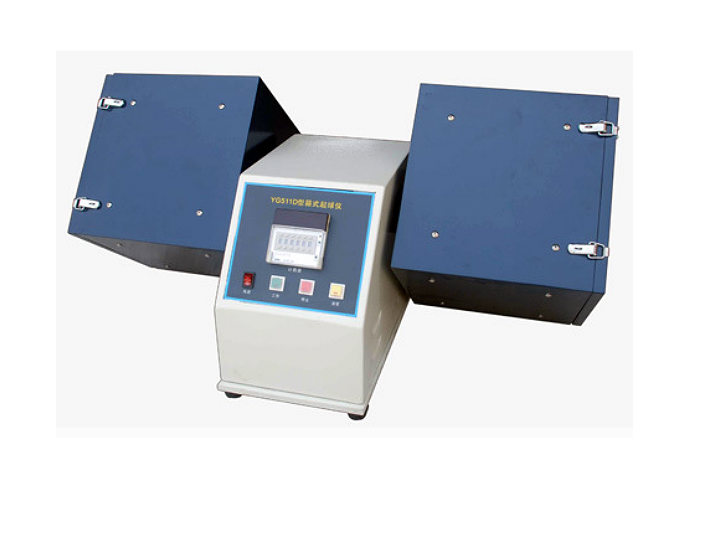

YG (B) 511-IV roller box pilling tester is used to measure the pilling degree of most fabrics (more suitable for wool woven fabrics) under slight pressure and the wear resistance of fine and thin woven fabrics of cotton, linen and spun silk.
Scope of application:
The rolling box pilling tester is used to measure the pilling degree of most fabrics (more suitable for wool woven fabrics) under slight pressure and the wear resistance of fine and thin woven fabrics of cotton, linen and spun silk.
Relevant standards:
GB/T4802.3、ISO12945-1、JIS L1076、IWS TM152
Test mode:
Put the fabric sample on the sample tube, put it into a new square wooden box lined with rubber cork with specific friction coefficient and roll it to the specified number of times, compare it with the standard sample, and evaluate the pilling grade
Technical characteristics:
The transmission mechanism is driven by synchronous motor, with low motion noise and constant speed;
The number of turns can be set arbitrarily. When the preset number of turns is reached, the instrument will stop automatically;
The box is made of multi-layer composite materials, which is sturdy and durable;
Imported rubber cork and polyurethane sample carrier tubes;
Simplified design, convenient operation and maintenance;
Technical parameters:
1. Number of pilling boxes: 2
2. Box speed: 60r/min
3. Test revolutions: 1~99999 (LED display)
4. Overall dimension: 780 × four hundred and thirty × 500mm
5. Power supply: AC220V, 90W
