This machine is equipped with high-precision force value sensor controlled by computer, which is used to measure the breaking strength and breaking elongation of various cotton, silk, chemical fiber, non-woven fabric and various composite materials, as well as various performance indicators such as bursting, tearing, peeling, and load elongation at constant elongation. It displays real-time curves and is intuitive, and automatically prints the test data into a Chinese comprehensive test report after statistics. It can also print the strength and elongation curves, and can also measure the breaking strength and elongation of other composite materials, providing objective and detailed data for adjusting and improving the production process. This machine has powerful data storage function, and can realize paperless office with LAN. The manufacturer can upgrade users for free at any time according to the development needs of the enterprise. This machine is a dual system control instrument, which can be operated independently even without computer.

Configuration: host+computer+printer

Main technical parameters:
Force test range: 0-3000N, 0-5000N
Clamping distance: 25-250mm
Tensile speed: 20-600 mm/min (stepless speed regulation)
Test accuracy: ± 1%
Overall dimension: L600 × W430 × H1250mm

•

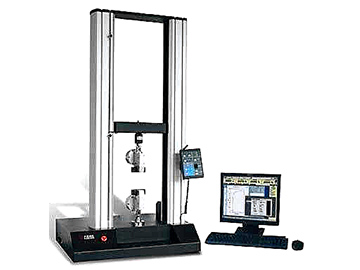

  YG026B Non woven multi-functional computer strength machine (export type)
