Scope of application:
This instrument is suitable for testing the abrasion resistance and pilling degree of knitted fabrics, wool textiles, artificial leather, synthetic leather, etc. under pressure.

working principle:
Under a certain pressure, the circular fabric sample and the standard abrasive rub each other according to the motion track of Lissajous curve, causing the sample damage. The wear resistance of the fabric is expressed by the wear resistance times of the sample damage.

Standards:
GB/T 21196.1-2007 Textiles - Determination of Abrasion Resistance of Fabrics by Martindale Method - Part 1
GB/T 21196.2-2007 Textiles - Determination of Abrasion Resistance of Fabrics by Martindale Method - Part 2
GB/T 21196.3-2007 Textiles - Determination of Abrasion Resistance of Fabrics by Martindale Method - Part 3
GB/T 21196.4-2007 Textiles - Determination of Abrasion Resistance of Fabrics by Martindale Method - Part 4
GB/T 4802.2-1997 Textiles -- Pilling Test of Fabrics -- Martindale Method
GB 8690-88 Abrasion Resistance Test Method of Woolen Fabrics Martindale Method
ISO 12945-2:2002 Textiles - Determination of surface pilling properties of fabrics - Part 2: Martindale method
GB/T 13775-92 Test for Abrasion Resistance of Woven Fabrics of Cotton, Hemp and Spun Silk Martindale Method
ASTM D4966-1988 Fabric Abrasion Resistance Test Martindale Abrasion Tester
ASTM D4970-2002 Test Method for Fabric Pilling Resistance Martin Dyer Tester

Technical indicators:
Motion track: the instrument is equipped with 60 × 60mm (eccentricity 30mm) and 24 × 24 mm (eccentricity 12 mm) two kinds of Li Sharu motion tracks are respectively applicable to wear resistance test and pilling performance test.
Number of test heads: 6
Effective friction diameter of grinding head: φ 28.8mm (abrasion resistance test); φ 90mm (pilling performance test).
Effective diameter of grinding table: φ 121mm
Pressurizer mass:
A. Abrasion resistance test: wear clamp assembly 200 ± 1g, cloth sample weight 395 ± 2g, furniture decoration sample weight 594 ± 2g.
B. Pilling performance test: 155 ± 1g for the sample holder assembly and 260 ± 1g for the weighting block.
Abrasive weight: 2385 ± 10g.
Relative speed of gripper and grinding table: 50r/min
Display mode of test times: LED counter.
Number of single test: 1~99999 (power off for storage)
Accumulated times: 1~99999 (power off for saving)
Power supply voltage: AC380V ± 10% Power: 180W
Overall dimension: 820 × five hundred and thirty × 410mm

•

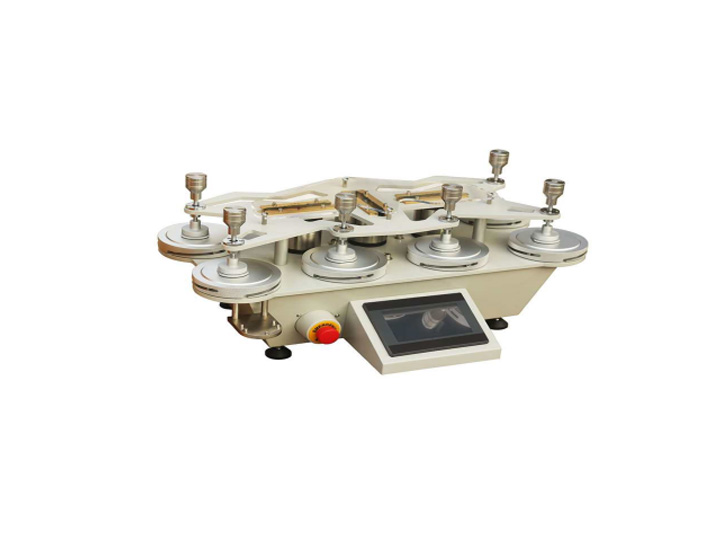

  YG401E intelligent color touch screen Martindale abrasion tester (export type)
