Summary:

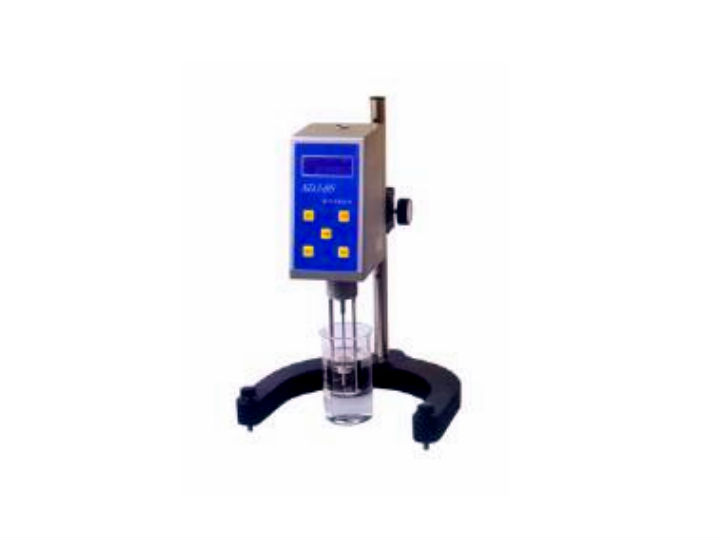

The digital viscometer SNB-1 is used to measure the viscosity resistance and viscosity of oils, paints, food, drugs, adhesives and other fluids.
It can measure the apparent viscosity and ^ viscosity of Newtonian liquid
Product features:
The digital viscometer SNB-1 uses a 16 bit microcomputer processor as the core of the stepping electric same height subdivision drive, LCD backlight display, and has the functions of stable speed, good accuracy, programmed design, simple operation, error alarm, etc. The screen directly displays viscosity, speed, percentage meter torque, rotor number, and the temperature of the measured liquid.
Main technical parameters:
Model |
SNB-1 |
Measuring range |
1 ~1×105mPa.s |
Rotor specifications |
Rotor 1-4 is equipped with rotor 0, which can measure the low viscosity to 0.1mPa. s |
Rotor speed |
6、12、30、60Rpm |
Automatic transmission |
It can automatically select the appropriate rotor number and speed |
Operation interface selection |
Chinese/English |
Reading stability cursor |
When the vertical bar cursor is full, the display reading is basically stable |
Measurement accuracy |
±2%(Newtonian liquid) |
Power supply |
communication220V±10% 50Hz±10% |
work environment |
temperature50C~350C,Relative humidity is not greater than80% |
Overall dimensions |
370×325×280mm |
Net weight |
6.8㎏ |
