Product introduction:

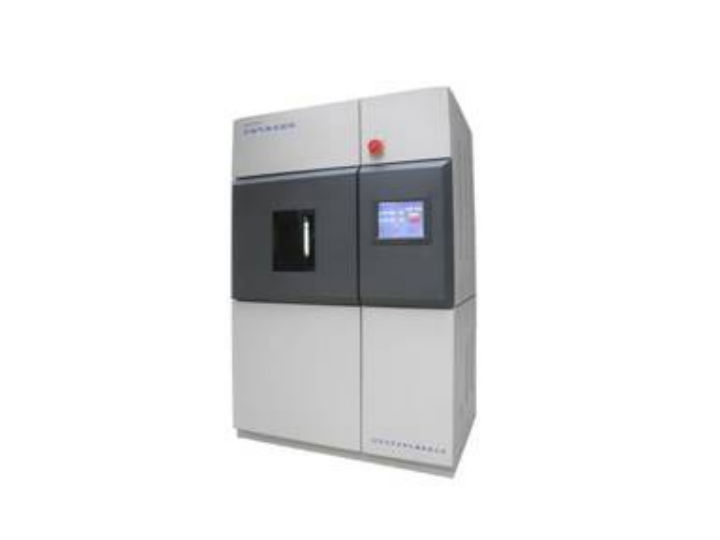

YG611S weather color fastness tester is used for light fastness, weather color fastness and light aging tests of colored materials such as textiles, printing and dyeing, clothing, automotive interior parts, geotextiles, leather, plastics, etc. By controlling items such as light irradiance, temperature, humidity and rain in the test chamber, provide the simulated natural conditions required for the experiment to test the light fastness, weather fastness and light aging performance of the sample; Online control of light intensity; Automatic monitoring and compensation of light energy; Closed loop control of temperature and humidity; Multi point adjustment function such as blackboard temperature loop control. Comply with American, European and national standards.
Purpose:
It is used for light fastness, weather fastness and light aging test of textile, printing and dyeing, clothing, automotive interior parts, geotextile, leather, plastic and other colored materials. By controlling items such as light irradiance, temperature, humidity and rain in the test chamber, provide the simulated natural conditions required for the experiment to test the light fastness, weather fastness and light aging performance of the sample; Online control of light intensity; Automatic monitoring and compensation of light energy; Closed loop control of temperature and humidity; Multi point adjustment function such as blackboard temperature loop control. Comply with American, European and national standards.
Standards:
AATCC16169, ISO105-B02, ISO105-B04, GB/T8427, GB/T8430, GB/T14576, GB/T15102, GB/T15104, SAEJ1960, 1885, JASOM346, PV1303, ASTM G155-1, 155-4, etc.
Instrument characteristics:
● The same environment reappears for countless times;
● Meet many national standards such as AATCC, ISO, GB/T, JIS, etc;
● Blue screen LCD, Chinese menu operation, dynamic display of the status in the test chamber, convenient and clear; Multi point monitoring and protection enable the instrument to run unattended;
● The safety protection monitoring points (irradiance, water level, cooling air, temperature in the bin, bin door, overcurrent, overpressure) enable the instrument to operate unattended;
● The imported 3000W long arc xenon lamp lighting system can simulate the solar spectrum truly;
● The relative position of the irradiance sensor to the light source is fixed to eliminate the measurement error caused by the rotating vibration of the rotary table and the refraction of light when the sample rotary table turns to different positions;
● Automatic compensation function of light energy;
● Dynamic balance technology of temperature (irradiation temperature, heater temperature rise, air conditioning refrigeration) and humidity (humidification of multiple groups of ultrasonic atomizers, saturated steam humidification, and dehumidification of industrial refrigerators);
● Quick control of BST and BPT;
● Independent timing function of each sample;
● Double circuit electronic redundancy design ensures the continuous fault free operation of the instrument for a long time.
Technical parameters:
1. Product model: YG611S
2. Display mode: blue screen LCD, full Chinese menu operation
3. Xenon lamp power supply: 220V, 50HZ, 3000W (zui high-power) imported air-cooled xenon lamp
4. Average service life: 1500 hours (including automatic energy compensation function, effectively extending the service life of the lamp)
5. Rotation speed of sample holder: 5r/min
6. Rotation diameter of sample holder: 205mm
7. Number of sample holders and effective exposure area of single sample holder: 10, 100 × 45mm（L × W）
8. Temperature control range and accuracy of test chamber: 25 ℃～ 48 ℃± 2 ℃ (irradiation temperature, heater temperature rise, air conditioning refrigeration)
9. Humidity control range and accuracy of the test chamber: 25% RH ～ 85% RH ± 5% RH (ultrasonic atomizer humidification, saturated steam humidification, industrial refrigerator dehumidification)
10. Blackboard temperature range and accuracy: BPT: 30 ℃～ 80 ℃± 2 ℃
Standard blackboard temperature range and accuracy: BST: 35 ℃～ 85 ℃± 1 ℃
(Wireless transmission, digital display, automatic monitoring, closed-loop control)
No.: ZL 2005 2 0046742.4
11. Control range and accuracy of light irradiance: 300nm ～ 400nm 35 ～ 55W/m2 ± 1W/m2
420nm 0.550～1.300W/m2±0.02W/m2
340nm or 300nm~800nm and other wave band monitoring are optional.
Light irradiance control mode: light irradiance sensor monitoring, digital setting, automatic compensation, stepless adjustment.
No.: ZL 2005 2 0041350.9
12. Refrigeration compressor power: 1.5 horsepower
13. Instrument placement: on the ground
14. Overall dimension: 900 × six hundred and fifty × 1800mm（L × W × H）
15. Power supply: 220V, 50HZ, 4500W
16. Weight: 230kg
