Summary:

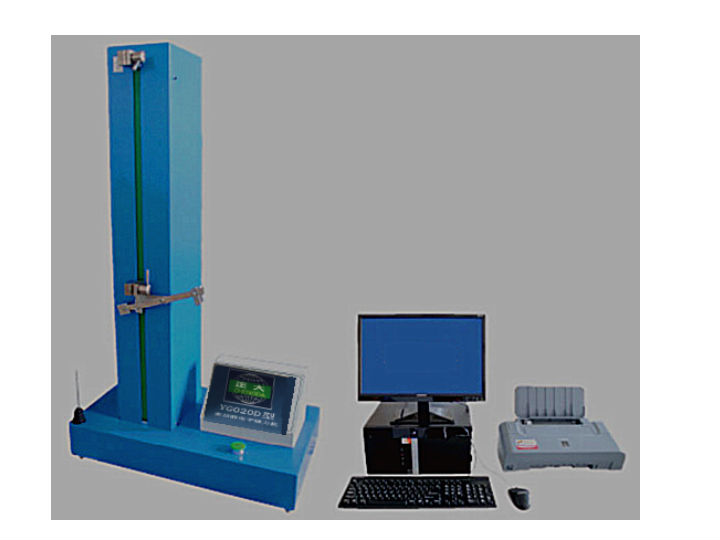

YG020D multi-function electronic strength machine is specially designed and manufactured according to the international and national standards and the characteristics of China's textile industry. The test methods include tensile strength test, tear strength test, peel strength test, etc; The sample unit can choose fineness, width and area; Real time display of test curve and test results; The test data can be stored at will, regardless of time, quantity and size, and can also be sent to the management department through the LAN or Internet for viewing, so as to achieve paperless office.
The instrument complies with GB/T3916-1977, ISO2062-1993, ASTM, JIS, BS and other domestic and foreign test standards, and is applicable to the test of breaking strength, elongation at break, tearing strength and peeling strength of cotton, wool, hemp, silk, chemical fiber, blended yarn, tungsten (molybdenum) wire, etc.
Index technology:
1. Form: (CRE) constant rate elongation
2. Clamping distance: arbitrary setting within 60~500mm, stepless speed regulation, error ± 1mm
3. Tensile speed: 20~1200mm/min, speed error shall not exceed ± 2%
4. Load range: 0~5000cN, accuracy of 0~10000cN is ± 0.5%
5. The error of elongation indication shall not exceed ± 1mm
6. Transmission mode: high-precision gapless precision lead screw direct transmission, mute test
7. Pre tensioning: manual tensioning, 0~120cN adjustable
8. Computer configuration: industrial personal computer, ordinary household computer, Pentium 3 or above, hard disk space more than 50M, memory more than 256M, and one COM port
9. Display: color display, resolution 800 × 600 or above, 1024 is recommended × seven hundred and sixty-eight
10. Operating system: winxp is recommended
11. Printer configuration: ordinary inkjet, pin type, A4 printing paper
12. Times of large test: 300
13. Power supply voltage: AC220V ± 10%, instrument power: 200W
14. Overall dimensions of the instrument (L × W × H):600 × three hundred and fifty × 1160mm
