Summary:

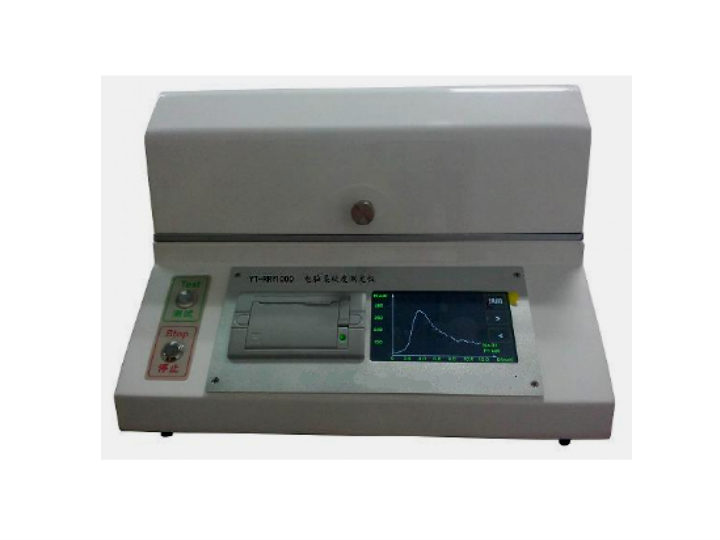

The computer softness tester is a kind of testing instrument that simulates the softness of hand feeling. It is mainly used for testing the softness of high and middle grade toilet paper, tobacco flakes, fiber fabrics and other materials.
This instrument refers to the principle of the American Handle O Meter instrument and is designed according to the relevant provisions of the national standard GB8942-2002 Paper Softness Determination Method. The instrument measurement and control system adopts 32-bit ARM processor and 5-inch color touch screen, realizing simple man-machine conversation function. It has the advantages of advanced technology, complete functions, reliable performance, simple operation, etc. It is an ideal experimental equipment for papermaking, scientific research, quality inspection and other industries and departments.
Technical characteristics:
1. 5-inch color touch screen, Chinese and English menu interface, multiple operation prompts, intuitive and convenient to use
2. Real time display of pressure value changes during the test, and the pressure curves of two tests can be extracted for comparison
3. Automatic measurement, statistics and printing of test results, with data saving function
4. High speed micro printer, high printing speed, easy to use, low failure
5. Modern design concept of electromechanical integration, compact structure, beautiful appearance and convenient maintenance
Technical parameters:
1. Measuring range: (10~1000) mN
2. Resolution: 1mN
3. Indication error: ± 1%
4. Indicator variability: ≤ 1%
5. Total travel of probe: 12mm ± 0.5mm
6. Pressing depth of probe: 8mm
7. Seam width of test bench: 5mm, 6.35mm, 10mm, 20mm
8. Working environment: temperature 0~40 ℃, relative humidity no more than 85%
9. Overall dimension: 380 mm (length) × 260 mm wide × 290 mm high
10. Instrument weight: about 18kg
