ZD-100L Quantitative Determination Standard Sample Sampler
key word: ZD-100L Quantitative Determination Standard Sample Sampler
Overview: 1、 Introduction to L100 manual samplerThis hand pressure sampling knife is widely used for cutting and sampling cotton, wool, silk, hemp, chemical fiber and other textiles and knitwear, as well as cutting leather, paper products, aluminum foil, etc. …

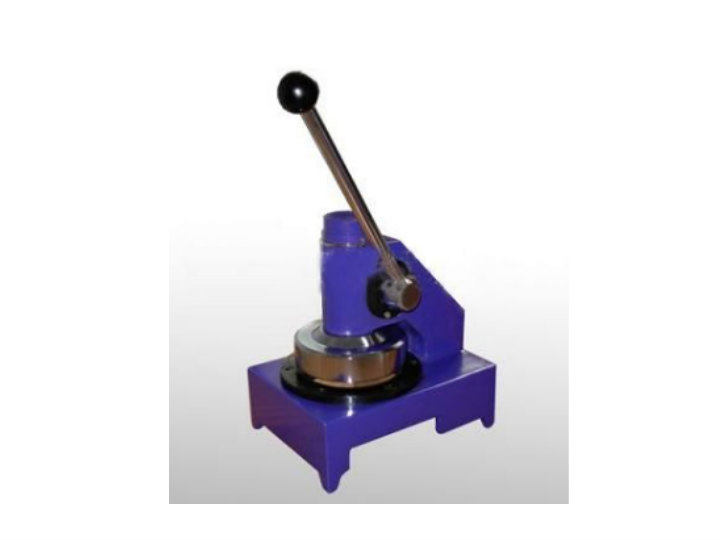

1、 Introduction to L100 manual sampler
This hand pressure sampling knife is widely used for cutting and sampling cotton, wool, silk, hemp, chemical fiber and other textiles and knitwear, as well as cutting leather, paper products, aluminum foil, etc. It is especially suitable for multi-layer cloth cutting at one time, which greatly reduces the workload and improves the work efficiency.
2、 Operation steps of L100 hand pressure sampler:
Place the machine on a flat and hard work surface, place the PVC base plate in the center of the machine chassis, place the textile cloth or paper to be sampled on the PVC base plate, retract your hand, gently press down the operating lever, and then gently loosen the sampling.
3、 Specifications and parameters of L100 hand pressure sampler:
Cutting area: 100cm ²
Cutting thickness: 0.1mm-10mm
Machine size: 400 * 240 * 550mm
Blade size: 112.84mm (100 square centimeters) in diameter
Outer package size: 400 * 260 * 370mm
Total weight: nearly 20kg (wooden package)
