1、 Introduction and application of the instrument

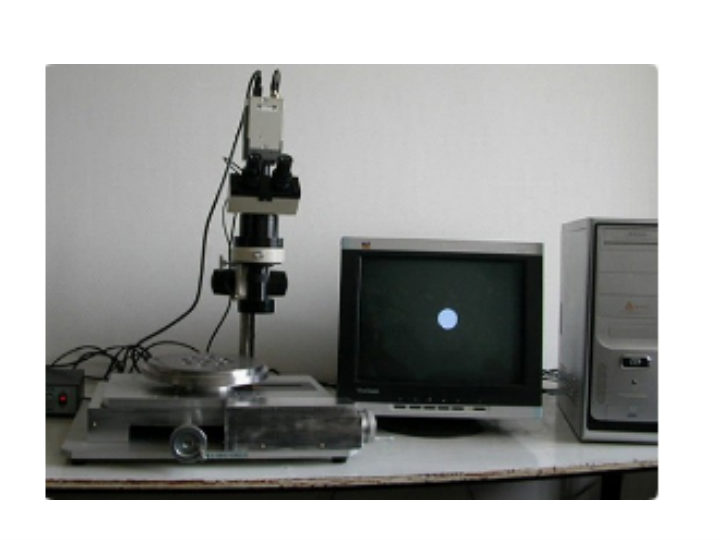

Y1051 video detection equipment adopts the original imaging and lighting optical system design, so that it has better contrast and depth of field. It has a wealth of optional accessories, excellent quality and reliability, which can be comparable to international products. The range of use of this series of products is quite wide. When observing objects, it can produce a standing two-dimensional space image, with clear and wide imaging, and a long working distance. This instrument has reliable performance, simple operation, convenient use, beautiful appearance, and a wide range of use. It meets the inspection, measurement and analysis requirements of modern biology, medicine, environment, agriculture and forestry, chemical industry, public security, microelectronics, semiconductor and other fields, and is widely used in schools Bioengineering and scientific research, industrial assembly, testing and measurement, and quality control.
2、 Advantages of the instrument
1. 1.3 million high-definition CMOS image sensor, with clear and smooth video images.
2. Support automatic exposure, automatic white balance, and manual adjustment of exposure speed and RGB gain.
3. 8 sets of crosshairs are available for selection, and the position and color of 8 sets of crosshairs can be adjusted at will.
4. Save parameter function, which can save various adjusted parameters at any time
3、 Main technical indicators of the instrument
1. Zoom ratio: 1:6.5
2. Zoom range of objective lens: 0.7X – 4.5X continuous zoom
3. Working distance: 105-110 (mm)
4. Focusing range: 60 (mm)
5. Total magnification: 7X-320X
6. Light source: 60 LED adjustable brightness.
