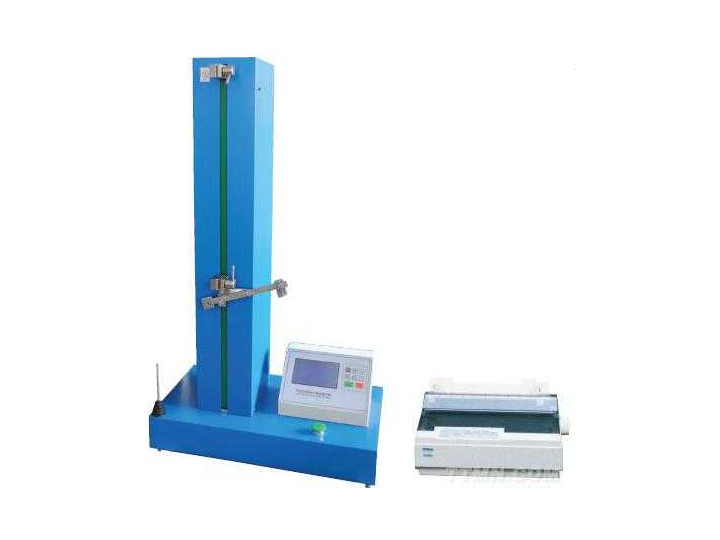

Purpose:
It is used to measure the breaking strength and elongation at break of glass fiber materials such as glass fiber, glass fiber cloth, etc. It can be used for constant speed tensile test. The force measurement system with high precision and high speed is adopted, and the test results are displayed on the Chinese LCD, or the tensile test report is printed.
Applicable standards:
GB/T3916-1997，GB/T14344-1993。
Main parameters:
1. Type: constant rate elongation (CRE)
2. Sample length: arbitrarily set within 250~500mm, with an error of ± 1mm
3. Tensile speed: 250 ～ 500mm/min, no-load speed error shall not exceed ± 2%
4. Measuring range of force value: ≤ 5000cN Resolution: 0.5CN
5. Elongation indication error: no more than ± 1mm
6. The indication error of breaking time shall not exceed ± 0.5s
7. Test data output mode:
Chinese LCD: test number, breaking elongation, breaking strength and other test data
Printer output: tensile test report and historical query.
8. Printer configuration: Yingmei needle printer (optional)
9. Power supply voltage: AC220V ± 10%, power: 60W
10. Boundary dimension: main unit: 550 × three hundred and fifty × 1080mm
