Purpose:
This instrument mainly measures the whiteness of paper and paperboard, pulp and chemical fiber pulp, cotton and chemical fiber, textiles, plastics, ceramics, pond porcelain, starch, salt, white cement, porcelain clay, talc and other objects. It can also measure the opacity and other optical properties of thin sheet materials.
1. Determine the blue diffuse reflectance factor (R457) of the sample, which is called "blue brightness" or "ISO brightness".
2. Analyze whether the sample material contains fluorescent whitening agent, and determine the fluorescent whiteness generated by fluorescent emission, that is, whiteness.
3. Measure the luminance stimulus value Y10 of the sample, that is, the green light diffuse reflection factor Ry.
4. Measure the opacity, transparency, light scattering coefficient and light absorption coefficient of the sample.
5. Determine the ink absorption value of paper and paperboard.

Executive standard:
This instrument implements the following standards:
GB7933: Pulp, paper and paperboard - Determination of diffuse reflectance factor (d/o method);
GB7974: Determination of whiteness of paper and paperboard (d/o method);
ISO 2470: Paper and board Determination of diffuse blue reflectance factor (ISO whiteness);
GB 8940.2: Pulp whiteness determination method.
GB 1840: Determination of industrial potato starch.
GB 2913: Test Method for Whiteness of Plastics.
GB 13025.2: General Test Methods for Salt Industry, Determination of Whiteness.
GB 1543: Determination of Opacity of Paper.
ISO 2471: Paper and board Determination of opacity.
GB10339: Determination of light scattering coefficient and light absorption coefficient of paper and pulp.
GB T/5950: Measurement Method for Whiteness of Building Materials and Non metallic Mineral Products.
Textile industry standard: determination of whiteness of chemical fiber pulp.

Main technical characteristics:
1. This instrument complies with GB3978-83; Standard illuminant and illumination observation conditions. Simulate D65 illumination. D/o illumination is used to observe the geometric conditions. The diameter of the diffuse sphere is 150 mm, the diameter of the test hole is 30 mm, and the light absorber is set to eliminate the influence of the specular reflected light of the sample. The peak wavelength of the spectral power distribution of the R457 whiteness optical system is 457nm, and the FWHM is 44nm. The Y10 optical system complies with GB3979-83; Object color measurement method.
2. Measure and digitally display whiteness, fluorescent (whitening) whiteness, opacity (%), etc.
3. Zero drift: ≤ 0.1
4. Indication drift: ≤ 0.1
5. Indication error: ≤ 0.5
6. Repeatability error: ≤ 0.1
7. Mirror reflection error: ≤ 0.1
8. Sample size: test plane not less than Φ 30mm, sample thickness not exceeding 40mm
9. Power supply: AC 170~264V, 50Hz, 0.2A
10. Working environment: temperature 0~40 ℃, relative humidity no more than 85%
11. Size and weight: length × wide × Height=365 × two hundred and sixty × 425 mm，11kg

•

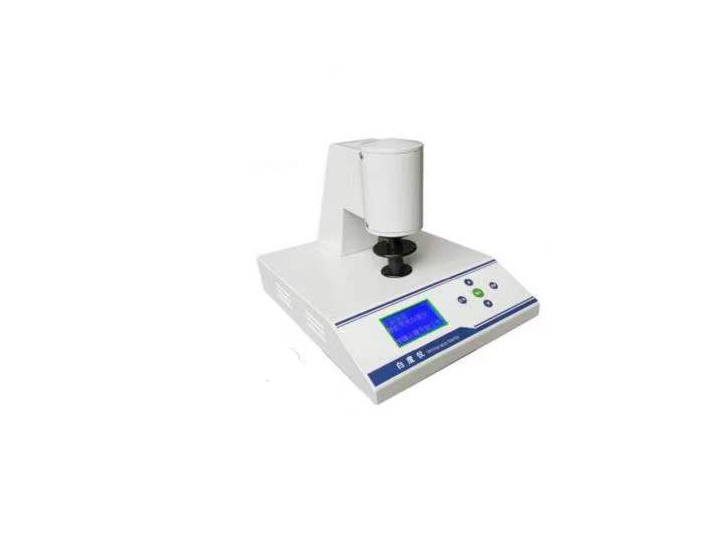

  HK-BB sanitary material whiteness+fluorescence tester (export type, dual-use instrument)
