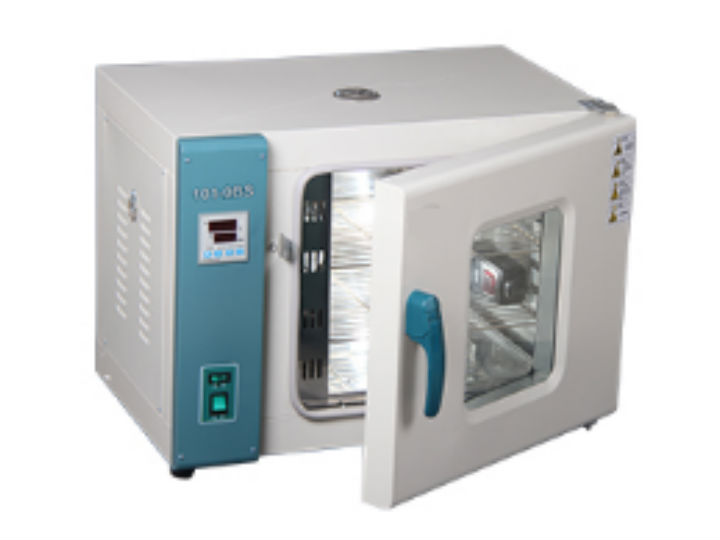

Y101 electric thermostatic blast drying oven
key word: Y101 electric thermostatic blast drying oven
Overview: Product features:1. Microcomputer intelligent instrument, accurate temperature control, large viewing angle2. The liner is designed with semicircle and four corners, and the shell adopts environment-friendly electrostatic spraying technology, which is…
Ordering
Product Details Photo Gallery
Product features:
1. Microcomputer intelligent instrument, accurate temperature control, large viewing angle
2. The liner is designed with semicircle and four corners, and the shell adopts environment-friendly electrostatic spraying technology, which is beautiful and elegant
3. There is no heat source at the bottom of the left electric heating tube, which is safe
4. Side fan duct design, accurate temperature control
5. It has the functions of timing, overtemperature alarm, temperature deviation repair, temperature control and self adjustment, etc
6. The working room is divided into mirror stainless steel or galvanized plate, and stainless steel is more corrosion resistant
7. Independent fan switch, fan resistant to high temperature and corrosion, etc., can work continuously for a long time


Technical indicators:

Power supply voltage: AC220V 50HZ
Temperature control range: RT+10 ℃~250 ℃
Temperature resolution: 1 ℃
Temperature fluctuation: ± 1 ℃
Temperature uniformity: ± 2.5% (test point is 100 ℃)
Working environment temperature: 5 ℃~40 ℃
Volume: 15.6L
Tank size: 50 * 250 * 250 (depth, width and height mm)
Boundary dimension: 350 * 530 * 390 (depth, width and height mm)
Power: 0.6kw
Load carrier: 2 pieces
Timing range: 1~9999min
